Compose

Composition involves the combination of 2 processes (binary compositions) in a single composite process.

• This requires an active Workspace. A new workspace can be created using the



  Create Workspace icon.
• Processes can be added to the workspace by double-clicking them in the Processes list on the left or by right-clicking them and selecting the



  Add Graph option.

Once added, processes can be composed together in 3 ways:

1. In sequence
2. In parallel
3. Conditionally

All composition actions are performed in 2 steps: first select (left-click) on an element and then right-click on a target element to compose them together. The selection is different for each action, as described below.

Each time a composition action is performed successfully, a new intermediate composition is created and listed in the Compositions list on the left.

Intermediate compositions are named automatically as _Step# using a unique number (wHith separate counting for each workspace). These can be used as components in further composition actions. They cannot be renamed, but they can be stored as new processes.

In some cases and due to certain design decisions (some of which are mentioned below), the result of a composition action may seem bizarre or unexpected. However, every composition action is performed using formal, logic-based reasoning and is guaranteed to be correct.

For example, the reasoner guarantees systematic resource accounting, so that unused resources (for example in sequences of optional processes) may appear as new outputs.

In Sequence

Composing 2 processes in sequence creates a composition where the output of one process connects to an input of the same type of another process. This is the most common composition action.

• This can be accomplished by seleting a input/output resource and then right-clicking on a corresponding output/input resource of another process.

The UI helps identify valid targets for sequential composition:

• Hovering above a resource highlights matching targets using orange boxes.
• Selecting a resource highlights matching targets using dark green boxes until the resource is de-selected.

For example, consider a process with parallel outputs A and B, and another process with corresponding parallel inputs A and B. We can compose them in sequence by selecting the output A of the first process and right-clicking on the input A of the other. Even though we selected A for composition, both A and B will be connected in the resulting composite process.

The rationale for this design choice is beyond the scope of this documentation, but we refer the interested reader to the relevant publication.

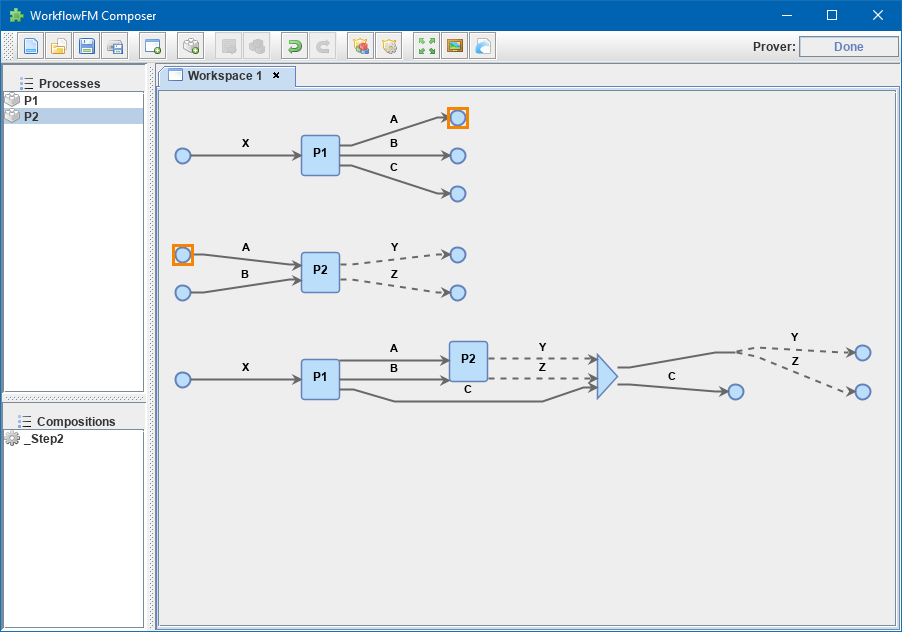

An example sequential composition, with the orange highlight boxes, is shown below:

In Parallel

Composing 2 processes in parallel groups them together in a composite process that executes them both at the same time. The resulting composition has all of the inputs and all of the outputs from both processes.

• This can be accomplished by selecting a blue process box and then right-clicking on a different blue process box.

A triangle join node will appear in the composite process in this case.

Conditionally

The conditional composition of 2 processes leads to a composite process where only one of the 2 processes will be executed depending on runtime conditions. This type of composition is useful in cases where each of the components of an optional output of a process needs to be handled by a different receiving process.

Which process is executed is dictated by a new optional input, using one input from each process. If the first option is provided (at runtime), the first process will be executed, whereas if the second option is provided, the other process will be executed.

• This can be accomplished by seleting an input resource and then right-clicking on an input resource of another process.

One or more diamond with nodes may appear in the composite process in this case.
